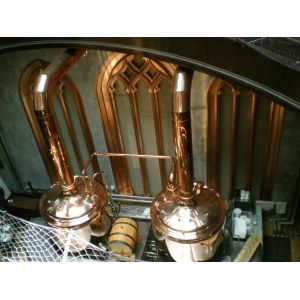

Semi Auto Steam Copper Brewing Equipment , 500L Microbrewery Machine

Mash tun/ Lauter tun

1. Dished head top head, cone shaped bottom;

2. Dimensions: φ1360×2600,

3. Total volume 1300L, effective volume 1000L

4. Rock wool insulation, insulation thickness 80mm;

5. Inner tank thickness 3mm, cladding thickness 2mm;

6. Top mechanical rake system, gear speed reducer,

motor power 0.75kw. Side grain discharge port,

7. Wedge wire false bottom, with intense support, with unload handle;

Filter plate bottom with under flush valves, with wort collection device;

8. CIP rotatable spray balls 2 pieces, with sparge ring;

9. Top manhole, φ500mm, with glass sight glass;

10. Top LED sight light;

11. PT100 temperature probe;

12. Stainless steel try-clamp level gauge, with stainless protection tube;

13. SUS304 grain discharge valve 430*330, with grain discharge tube attached.

Welding seams wire brushed polished;

14. 4 legs, with adjustment bolts, 2 fixing holes on the base plates;

15. Decoration tube (according to your plant height)

16. Assorted valves and fittings

Wort kettle /whirlpool tank

1. Dished head top head, cone shaped bottom;

2. Dimensions: φ1360×2600,

3. Total volume 1300L, effective volume 1000L

4. Rock wool insulation, insulation thickness 80mm;

5. Inner tank thickness 3mm, cladding thickness 2mm;

6. Steam heating: Side and cone steam heating jacket, bottom Cone heating(patent product No. 2009200271826), Heat transfer area 1.46m2;

7. Top mechanical agitation: Cycloid reducer, motor power 0.75kw;

8. CIP rotatable spray balls 2 pieces

9. Top manhole, φ500mm, with glass sight glass;

10. Top LED sight light;

11. PT100 temperature probe;

12. Stainless steel try-clamp level gauge, with stainless protection tube;

13. Welding seams brushed polished;

14. 4 legs, with adjustment bolts, 2 fixing holes on the base plates;

15. Indoor vapor condense device, with steam condensate tube;

16. Assorted valves and fittings

Advantages:
1. Complete, new, and high quality configuration.
2. Auxiliary systems selection of leading and imported brand.
3. The auxiliary systems are long life, high-performance, high-quality, low-loss.
4. Certified stainless steel(304,316) material for all tanks.
5. Electrical accessories reach CE, PED,LVD export standards.
6. Supporting auxiliary system voltage and frequency match your standard exactly.
7. New production technics.
8. Stable quality, high performance, strict quality control.
9. All the equipment are adopted 100%TIG welded joints, mirror Polishing.
